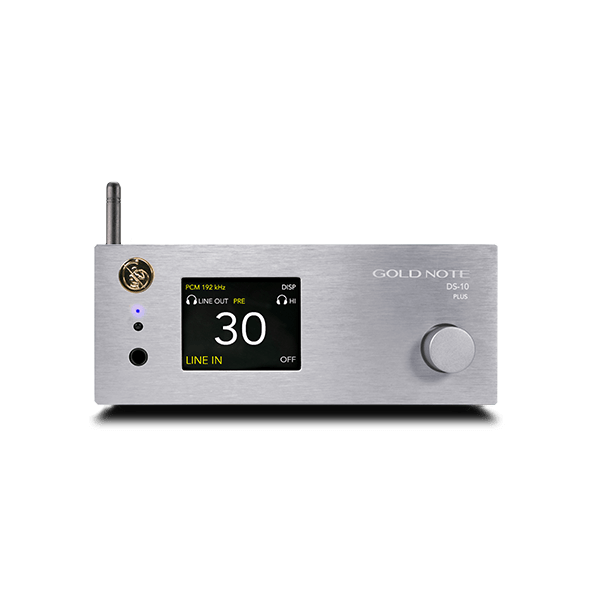

Gold Note DS-10 EVO Line Streamer
$5,199.00
The DS-10 is a versatile state-of-the-art streaming DAC, featuring a D/A converter with a cutting-edge streamer, a line preamplifier and a headphone amplifier. In addition to the already complete connectivity, it also features high-definition Bluetooth and audiophile headphone output. The DS-10 supports high-resolution files, such as MQA and DSD (up to DSD512), providing the best audio quality to enjoy your favorite songs. The technology of the DS-10 is enclosed in a compact-sized ultra-rigid aluminium chassis, which makes it the perfect addition to a modern High-End audio system.
D/A CONVERTER CHIP:Â Â AKM AK4493 PCM up to 32bit/768kHz and DSD512
FREQUENCY RESPONSE:Â Â 20Hz-20kHz +/-0.1dB
THD (Total Harmonic Distortion):Â Â 0.001% max
SIGNAL TO NOISE RATIO:Â Â 125dB
DYNAMIC RANGE:Â Â 120dB
PREAMP STAGE VOLUME CONTROL:Â Â Enabled/Disabled
NETWORK CONNECTIVITY:Â Â LAN/WLAN (WiFi) 802.11a/b/g/n/ac Dual Band (10/433Mbps), Bluetooth: High Definition 5.0 (44/16)
HIGH QUALITY STREAMING:  Roon Ready, Airplay, MQA, Qobuz, Deezer, Spotify Connect, Tidal, Tidal Connect,  vTuner
SUPPORTED AUDIO FORMATS (NETWORK):  Up to PCM 32bit/384kHz; DSD256 (DSF, DFF); AIFF (.aif, .aiff, .aifc); ALAC; WAV (.wav) packed/unpacked; FLAC; MP3; Apple Lossless; OGG; Monkey’s
IMPORTANT: UPnP server must support DSD streaming in order to stream DSD files.
SUPPORTED MEDIA SERVERS:Â Â All UPnP, DLNA, Roon
DIGITAL INPUTS:Â Â 1x RCA coaxial PCM asynchronous up to 24bit/192kHz, 1x AES/EBU balanced PCM asynchronous up to 24bit/192kHz, 2x TOS-Link PCM asynchronous up to 24bit/192kHz, 1x USB-B up to DSD512 and PCM up to 32bit/384kHz, 1x USB-A port DSD256 and PCM up to 32bit/384kHz, formatted in FAT32/NTFS (32Gb max for pen drives)
ANALOGUE INPUT:  1x 3.5mm mini-jack (input impedance 10kΩ)
AUDIO OUTPUTS:Â Â DAC:Â Â 1x unbalanced RCA @ 2Vrms, 1x balanced XLR @ 2Vrms
PREAMP:Â Â 1x unbalanced RCA, 1x balanced XLR, 1x headphone 6.3mm jack on front panel (double gain)
OUTPUT IMPEDANCE:  50Ω
POWER CONSUMPTION:Â Â 35W
FUSE:Â Â 2A F
POWER SUPPLY:Â Â 100-240V / 50-60Hz, Multiple Transformer proprietary power supply
DIMENSIONS:Â Â 200mm W | 80mm H | 260mm D
WEIGHT: 4 Kg– net, 5 Kg– boxed
REMOTE CONTROL:Â Â Multifunctional remote control included
| Brand | Gold Note |
|---|
